RAIL BRACKET
Standard Bracket

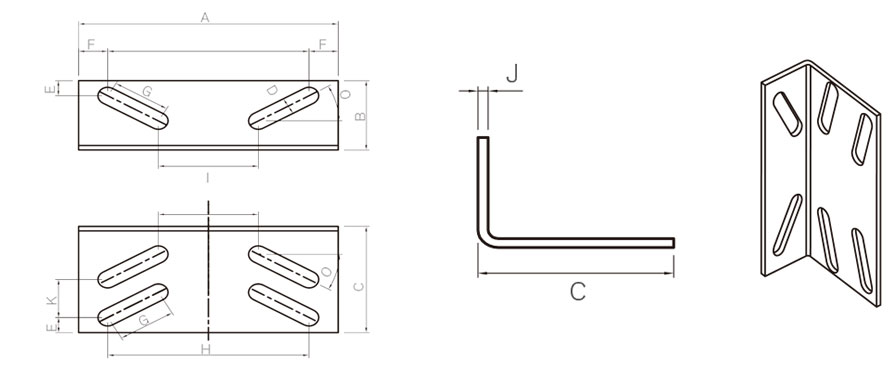

| Nova Code | A±1 | B±1 | C±1 | D | E | F | G | H | I±1 | J | K | O |
| NV15-B1 | 130 | 50 | 75 | 11 | 12 | 22.5 | 27 | 85 | 47 | 4 | 28 | 45° |
| NV15-B2 | 200 | 62 | 95 | 15 | 13.5 | 22.5 | 45 | 155 | 77 | 5 | 34 | 30° |
| NV15-B3 | 270 | 65 | 100 | 19 | 13.5 | 25 | 54 | 220 | 126 | 6 | 34 | 30° |
| NV15-B4 | 270 | 70 | 105 | 19 | 13.5 | 25 | 54 | 220 | 126 | 8 | 34 | 30° |
