FISHPLATE

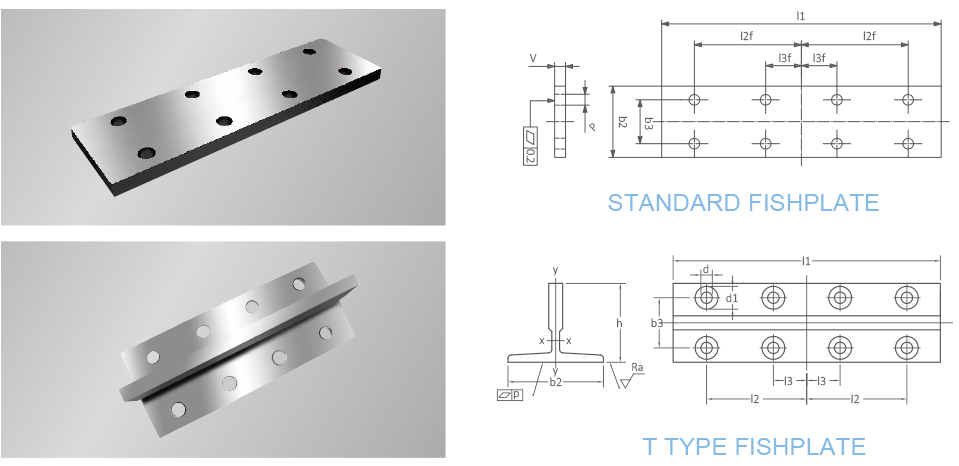

STANDARD FISHPLATE

Fishplate Dimensions and Tolerances For NOVA Standard Guide Rails - ISO7465 / GB-T22562/2008

Dimensions

Suitable Rail Model	d	l₁	l_2f	l_3f	b₂	b₃	V_min	Bolt
T45/A	9	160	65	15	50	25	8	M8×25
T50/A	9	200	75	25	50	30	8	M8×25
T70/A	13	250	105	25	70	42	10	M12×35
T70-1/B	13	250	105	25	70	42	10	M12×35
T75-3/B	13	250	105	25	70	42	10	M12×35
T78/B	13	250	105	25	70	42	10	M12×35
T82/B	13	216	80	26	80	50.8	10	M12×35
T89/B	13	305	114.3	38.1	90	57.2	13	M12×35
T90/B	13	305	114.3	38.1	90	57.2	13	M12×35
T114/B	17	305	114.3	38.1	120	70	17	M16×50
T127-1/B	17	305	114.3	38.1	130	79.4	17	M16×50
T127-2/B	17	305	114.3	38.1	130	79.4	17	M16×50
T140-1/B	21	380	152.4	31.8	140	92.1	28	M20×65
T140-2/B	21	380	152.4	31.8	140	92.1	28	M20×65
T140-3/B	21	380	152.4	31.8	140	92.1	38	M20×80
Tolerances	-	+3	±0.2	±0.2	-	±0.2	+3	-
Tolerances	-	0	±0.2	±0.2	-	±0.2	0	-

Note: Special thickness of Fishplate is available according to customer's requests.

T TYPE FISHPLATE

Dimensions

Suitable Rail Model	d	d₁	b₂	b₃	l₁	l₂	l₃	h	W_xx	W_yy	weight	bolt
Type	mm	mm	mm	mm	mm	mm	mm	mm	cm³	cm³	kg/pc	size
T75-3/B	13	26	75	43	240	90	30	61	9.29	7.06	2.1	M12*35
T78/B	13	26	78	43	240	90	30	55	7.56	6.71	1.8	M12*35
T82/B	13	26	82.5	50.8	216	81	27	66.6	10.20	7.40	1.36	M12*35
T89/B	13	26	89	57.2	305	114.3	38.1	61	14.25	11.80	3.8	M12*35
T90/B	13	26	90	57.2	305	114.3	38.1	74	20.87	11.80	4.1	M12*35
T114/B	17	33	114	79.4	305	114.3	38.1	88	29.70	19.10	5.0	M16*50
T127-1/B	17	33	127	79.4	305	114.3	38.1	88	30.40	23.40	5.4	M16*50
T127-2/B	17	33	127	79.4	305	114.3	38.1	88	30.90	36.20	6.9	M16*50
T140-1/B	21	40	140	92.1	380	152.4	31.8	107	53.40	44.30	10.5	M20*65
T140-2/B	21	40	140	92.1	380	152.4	31.8	101	68.00	51.20	12.9	M20*65
T140-3/B	21	40	140	92.1	380	152.4	31.8	126	114.60	69.40	17.5	M20*65
Tolerances	-	-	±1.5	±0.2	±1.5	±0.2	±0.2	±0.1	-	-	-	-

Note: Special thickness of Fishplate is available according to customer's requests.
