MACHINED GUIDE RAIL

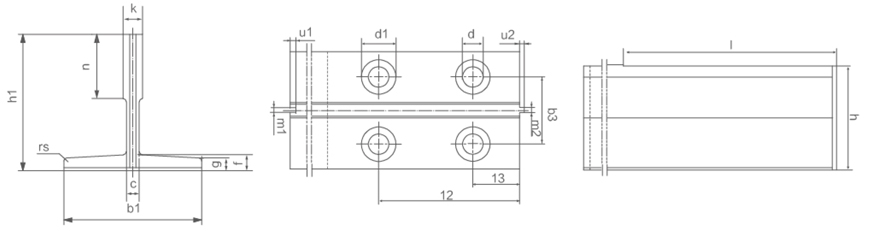

Dimensions

Type	b1	h1	k	n	c	f	g	rs	m1	m2	u1	u2	d	d1	b3	l_2g	l_3g	l	h
T70-1/B	70	65	9	34	6	8	6	1.5	3.00	2.97	3.50	3.00	13	26	42	105	25	128	64
T75-3/B	75	62	10	30	8	9	7	3	3.00	2.97	3.50	3.00	13	26	42	105	30	138	61
T78/B	78	56	10	26	7	8.5	6	2.5	3.00	2.97	3.50	3.00	13	26	42	105	38	138	55
T82/B	82	68.25	9	26	7.5	8.25	6	3	3.00	2.97	3.50	3.00	13	26	50.8	81	27	111	66.6
T82-3/B	82	62	15.88	30	8	8.5	6	2.5	3	2.95	3.5	3	13	26	50	114.3	38.1	156	61
T89-1/B	89	62	15.88	33.4	8	9	7	3	4	3.97	4.5	4	13	26	57.2	114.3	38.1	156	61
T89/B	89	62	16	34	10	11.1	7.9	3	6.40	6.37	7.14	6.35	13	26	57.2	114.3	38.1	156	61
T90/B	90	75	16	42	10	10	8	4	6.40	6.37	7.14	6.35	13	26	57.2	114.3	38.1	156	74
T114/B	114	89	16	38	9.5	11	8	4	6.40	6.37	7.14	6.35	17	33	70	114.3	38.1	156	88
T127-1/B	127	89	16	45	10	11	8	4	6.40	6.37	7.14	6.35	17	33	79.4	114.3	38.1	156	88
T127-2/B	127	89	16	51	10	15.9	12.7	5	6.40	6.37	7.14	6.35	17	33	79.4	114.3	38.1	156	88
T140-1/B	140	108	19	51	12.7	15.9	12.7	5	6.40	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193	107
T140-2/B	140	102	28.6	51	17.5	17.5	14.5	5	6.40	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193	101
T140-3/B	140	127	31.75	57	19	25.4	17.5	5	6.40	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193	126
T75	75	62	10	30	8	9	7	3	3.00	2.97	3.50	3.00	13	26	42	105	25	138	61
T125	125	82	16	42	10	12	8	4	6.40	6.37	7.14	6.35	17	33	79.4	114.3	38.1	156	81
T70-4	70	65	9	30	16	7	5	3	2.5	2.47	3	3.5	13	26	43	90	30	123	64
T75-4	75	62	10	26	6.5	8	6	3	2.5	2.47	3	3.5	13	26	43	90	30	123	61
T82-4	82	62	10	28	7	9	7	3	2.5	2.47	3	3.5	13	26	50	81	27	111	61
Tolerances
B Class	±1.5	±0.75	+0.10	+30	/	±0.75	±0.75	/	+0.060	0-0.06	±0.1	±0.1	/	/	±0.2	±0.2	±0.2	+30	±0.1
BE Class	±1.5	±0.75	+0.050	+30	/	±0.75	±0.75	/	+0.030	0-0.03	±0.1	±0.1	/	/	±0.2	±0.2	±0.2	+30	±0.05

Note: Dimensions l_2g, l_3g, d, b₃, are indentical to and have the same tolerances as fishplate dimensions l_2f, l_3f, d, b₃.

Machined Guide Rail - BE Class

Dimensions and Tolerances of High Precise Machined Guide Rails - ISO7465/GB-T22562/2008 (For Elevator Speed 1.6m/s~4m/s)

Dimensions

Type	b₁	h₁	k	n	c	f	g	r_s	m₁	m₂	u₁	u₂	d	d₁	b₃	l_2g	l_3g	l	h
Tolerances(High Precise)	±1.5	±0.75	+0.05/0	+3/0	-	±0.75	±0.75	-	+0.03/0	0/-0.03	±0.10	±0.10	-	-	±0.2	±0.2	±0.2	+3/0	±0.05
T89/BE	89	62	16	34	10	11.1	7.9	3	6.40	6.37	7.14	6.35	13	26	57.2	114.3	38.1	156	61
T90/BE	90	75	16	42	10	10	8	4	6.40	6.37	7.14	6.35	13	26	57.2	114.3	38.1	156	74
T114/BE	114	89	16	38	9.5	11	8	4	6.40	6.37	7.14	6.35	17	33	70	114.3	38.1	156	88
T127-1/BE	127	89	16	45	10	11	8	4	6.40	6.37	7.14	6.35	17	33	79.4	114.3	38.1	156	88
T127-2/BE	127	89	16	51	10	15.9	12.7	5	6.40	6.37	7.14	6.35	17	33	79.4	114.3	38.1	156	88
T140-1/BE	140	108	19	51	12.7	15.9	12.7	5	6.40	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193	107
T140-2/BE	140	102	28.6	51	17.5	17.5	14.5	5	6.40	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193	101
T140-3/BE	140	127	31.75	57	19	25.4	17.5	5	6.40	6.37	7.14	6.35	21	40	92.1	152.4	31.8	193	126

Note: Dimensions l2g, l3g, d, b3, are indentical to and have the same tolerances as fishplate dimensions l2f, l3f, d, b3.

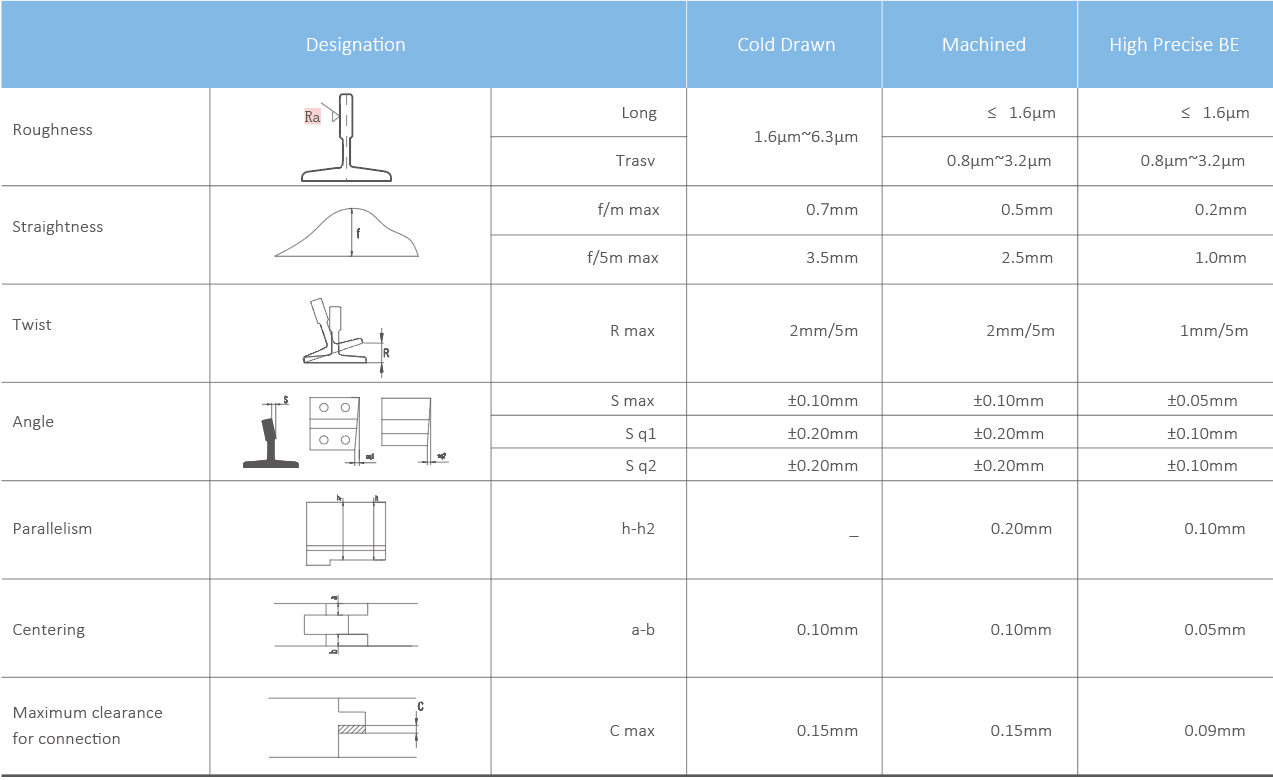

Technical and Mechanical Characteristics -ISO7465/GB-T22562/2008

Technical Characteristics

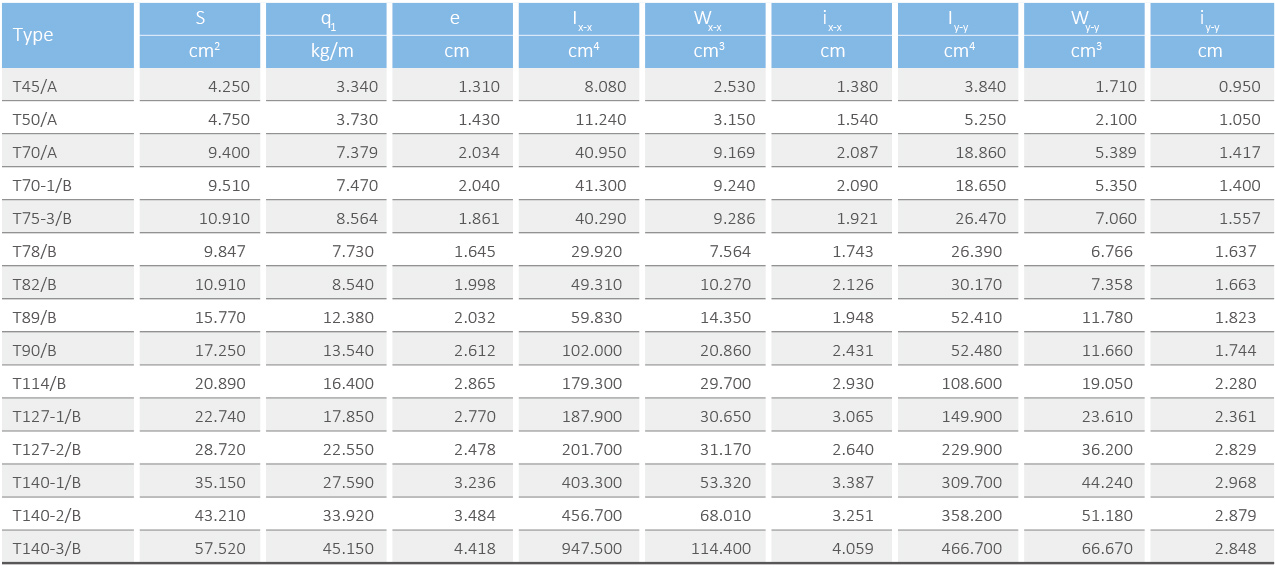

Physical Parameter of NOVA Guide Rail

Key parameter of guide rails
